Heat Shrink Anode Cap for Cathodic Protection (Anodecap, Gac)

Link Copied
Business Type Manufacturer, Exporter, Supplier
Product Discription View
Brand Name Gala
Temperature Resistance -55 °C to +100 °C
Click to view more

Product Details

Material
Cross-linked Polyolefin
Color
Black
Application
Cathodic Protection Anodes
Type
Heat Shrinkable Anode Cap
Country of Origin
India
Product form
Heat-shrinkable anode cap (anode-to-lead-wire seal)
Material grade
Highly cross-linked polyolefin
Size range
GAC 0420 to GAC 0550 (6 sizes); anode end recovering to 20 to 50 mm, wire end to 4.5 to 5.5 mm
Wall thickness
Recovered wall 3.5 to 4.8 mm at the anode end, 2.5 to 3.9 mm at the wire end
Sealant
Internal sealant lining that bonds to anode and wire insulation
XRF screening
Cadmium, lead, mercury and chromium screened by TCR Engineering (NABL-accredited lab), 2020 - none detected
Used for
Sealing the lead-wire exit of cathodic protection anodes
Installation
Heat-shrink over the anode end with the wire through the neck
Shrink temperature
125 °C
Tensile strength
12 N/mm2 min (ASTM D638)
Elongation
350 % min (ASTM D638)
Water absorption
0.2 % max (ASTM D570)
Dielectric strength
12 kV/mm min (ASTM D149)
Corrosion
Non-corrosive (Gala guaranteed value)
Product Code
GAC 0420 to GAC 0550 (ANODECAP)

In a cathodic protection system, a common cause of early failure is the anode-to-lead-wire connection: moisture gets in, the connection corrodes and the wire works loose from the anode. Gala's ANODECAP seals that connection.

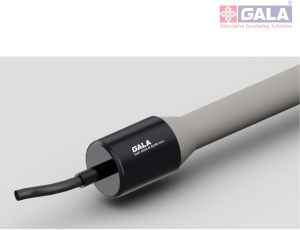

The cap is a black moulding of highly cross-linked polyolefin, stepped from a wide end that fits over the anode to a narrow neck that fits the lead wire. It is lined with a sealant that adheres to the anode material and to the wire insulation. Placed over the anode end with the wire through the neck, it is heat-shrunk at 125 °C so the wide end grips the anode and the neck grips the wire. The result is a moisture-proof, electrically insulated seal at the wire exit, with strain relief so that movement of the wire does not load the connection.

Six sizes cover anode-end bores recovering to 20, 40 or 50 mm and lead-wire necks recovering to 4.5 to 5.5 mm. Gala's guaranteed values include an operating range of -55 to +100 °C, 12 N/mm2 minimum tensile strength, 350 % minimum elongation and a non-corrosive material.

The caps are used by cathodic protection contractors and anode manufacturers on anodes for pipelines, tanks, marine structures and plant. Gala is an ISO 9001, ISO 14001 and ISO 45001 certified manufacturer.

Manufactured by Gala in India. Datasheet and size selection on request.

Yes! I am interested

  • Additional Images

  • image 1


Technical Specification

  • PROPERTIES VALUE STANDARD
    Physical
    Tensile Strength 12 N/mm² (Mpa) (min.) ASTM D638
    Ultimate Elongation 350 % (min) ASTM D638
    Density 1.1 gm/cm³ (max.) ASTM D792
    Hardness 45 ±10 Shore D ASTM D2240
    Water absorption 0.2 % (max.) ASTM D570
    Corrosion Non-corrosive ASTM D2671
    Thermal
    Accelerated ageing (120°C for 500 hrs) ASTM D2671
    Tensile Strength 11 N/mm² (Mpa) (min.) ASTM D638
    Ultimate Elongation 300 % (min.) ASTM D638
    Low Temperature Flexibility No Cracking (-40°C for 4 hrs.) ASTM D2671
    Heat Shock No cracking or flowing (250°C for 30 min.) ESI 09-11
    Shrink Temperature 125°C IEC 216
    Operating Temperature -55 to +100°C IEC 216
    Electrical
    Dielectric Strength 12 KV/mm (min) ASTM D149
    Volume Resistivity 1 x 10¹⁴ Ohm.cm (min) ASTM D257
    Dielectric constant 5 (max.) ASTM D150

Specification

  • Code Anode End (D) Lead Wire End (d) Length Supplied (mm) Length Recovered (mm) Thickness After Recovery (T)
      Ds Min. Df Max. ds Min. df Max. TL (±2%)
    GAC 0420 41 20 13 4.5 120
    GAC 0420A 50 20 14 4.5 115
    GAC 0540 82 40 16 5 150
    GAC 0540A 102 40 16 5 140
    GAC 0550 108 50 20 5.5 180
    GAC 0550A 145 50 20 5.5 175
