Product Details
Material
Silicone Rubber
Packaging Type
Black
Number Of Flower
Screened Separable Connector
Usage
Electrical Connections
Size
Standard Size
Voltage Rating
15 KV
Current Rating
200 A
Temperature Rating
90°C
Waterproof
Yes
Flame Retardant
Yes
Brand Name
Gala
Additional Images
-

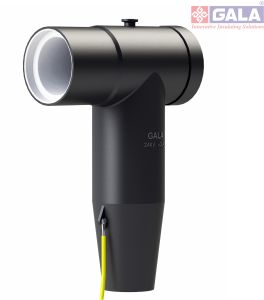

image 1
Technical Specification
- Voltage Class
- 11kV
- 24kV
- Continuous Current
- 630A
- 630A
- Alliance Bushing
- EN 50180 & 50181 Type C
- EN 50180 & 50181 Type C
- AC Withstand Voltage
- 29kV for 5 min
- 54kV for 5 min
- Impulse Withstand Voltage (10 times for each polarity)
- 95kV
- 125kV
- Partial Discharge at 1.73U0
- ≤ 10pC
- ≤ 10pC
- Screen Resistance
- ≤5000 Ω
- ≤5000 Ω
- Cable Cross-section
- 25-400mm2
- 25-400mm²
Ordering Informations
- Characteristic
- Rated Voltage
- Diameter over Insulation (mm)
- Cable Cross- section (mm²)
- Material of Lug
- Kit
- Screened
- 11kV
- A: Ø14-Ø16
- 01:25 02:35
- C: Cu
- 3: 3 Pcs / Kit
- Tee Connector
- B: Ø16-Ø18
- 03:50 04:70
- A: Al
- 1: 1 Pc / Kit
- C: Ø17-Ø20
- 05:95 06:120
- D: Ø20-Ø23
- 07:150 08:185
- Screened
- E: Ø23-Ø26
- 09:240 10:300
- Rear Connector
- F: Ø26-Ø30
- 11:400
- G: Ø30-Ø33
- H: Ø33-Ø36
- I: Ø36-Ø39
- 24kV
- A: Ø18-Ø22
- 01:25 02:35
- C: Cu
- 3: 3pcs/kit
- B: Ø22-Ø25
- 03:50 04:70
- A: Al
- 1: 1pc/kit
- C: Ø25-Ø28
- 05:95 06:120
- D: Ø28-Ø32
- 07:150 08:185
- E: Ø32-Ø35
- 09:240 10:300
- F: Ø35-Ø38
- 11:400
- G: Ø38-Ø41
