| Business Type | Manufacturer, Exporter, Supplier |
| Product Discription |  View |
| Brand Name | Gala |

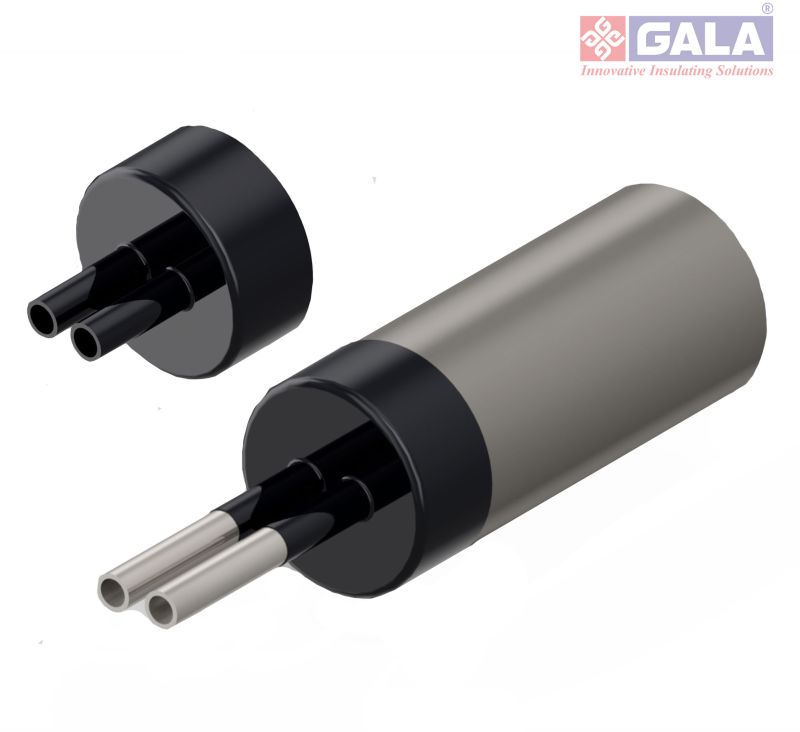

| Application | Sealing Pre-insulated Pipes |
| Click to view more | |
Product Details
Packaging Type
Black
Material
Rubber
Country of Origin
India
Condition
New
Number Of Flower
Sealing Cap
Compatibility
Fits Various Pipe Diameters
Temperature Resistance
Up To 100°C
Waterproof
Yes

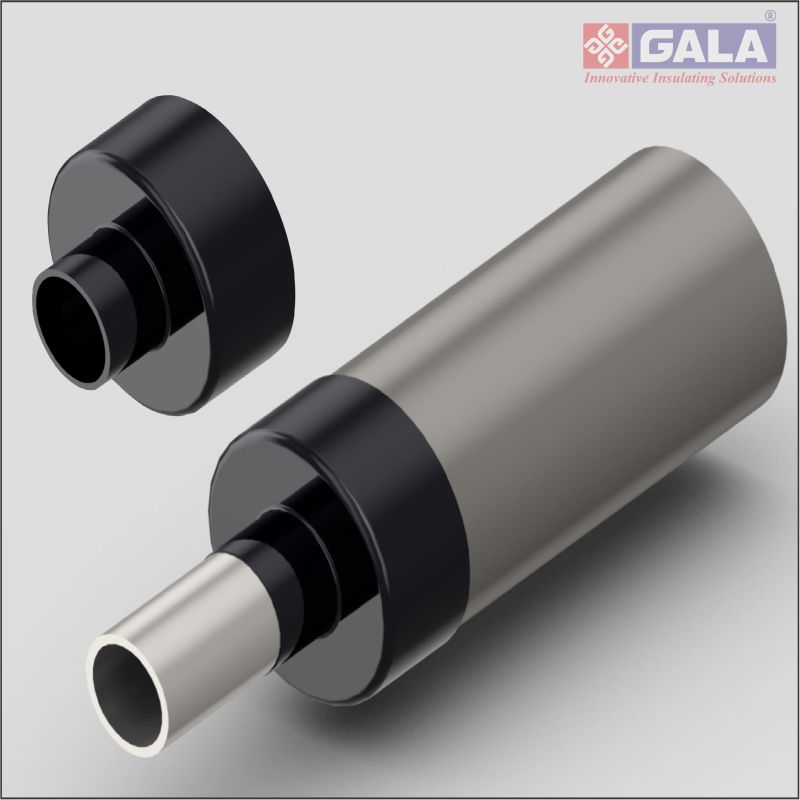

Additional Images
-
image 1
TECHNICAL SPECIFICATIONS
-
PROPERTIES VALUE STANDARD Tensile Strength 18 N/mm² (Mpa) (min.) ASTM D638 Ultimate Elongation 450% (min.) ASTM D638 Water Absorption 0.1% (max.) ASTM D570 Hardness 45 Shore D (Min.) ASTM D2240 Accelerated Ageing (150°C for 168 hrs.) ASTM D2671 Ultimate Elongation 320% (min.) ASTM D638 Low Temp. Flexibility on 25mm Mandrel (-40°C for 4 hrs.) No Cracking ASTM D3111 Continuous Temperature Limit -40°C to 125°C IEC 216 Adherence to the casing 100 (max.) (@23°C 9N/cm) Annex B Adherence to the coating (3lp) 100 (max.) (@23°C 9N/cm) Annex B Shear Resistance (Adhesive) 7N/cm² (min.) @23°C (10mm/min.) DIN 30672 Softening Point (Adhesive) 130°C (min.) ASTM E28 Adhesion / Peel Strength 14N/cm (min.) ISO 21809-3
Specification
| Code | Ds | Df | ds | df | Ls | Lf | Is | If | Tcf | Tbf | Mib | Mic |
| Min. | Max. | Min. | Max. | Min. | Min. | Min. | Min. | ±10% | ±10% | |||
| GPPC1-1030-1 | 10 | 15 | 6 | 10 | 40 | 70 | 20 | 87 | 0.8 | 0.8 | 3 | 15 |
| GPPC1-2460-1 | 24 | 35 | 15 | 24 | 75 | 87 | 40 | 115 | 1 | 1 | 3.5 | 15 |
| GPPC1-2460-2 | 24 | 35 | 15 | 24 | 87 | 87 | 40 | 115 | 1 | 1 | 3.5 | 15 |
| GPPC1-2475-1 | 24 | 35 | 15 | 24 | 87 | 115 | 40 | 145 | 1 | 1 | 3.5 | 15 |
| GPPC1-2475-2 | 24 | 35 | 15 | 24 | 115 | 115 | 40 | 145 | 1 | 1 | 3.5 | 15 |
| GPPC1-2490-1 | 24 | 35 | 15 | 24 | 145 | 145 | 40 | 170 | 1 | 1 | 3.5 | 15 |
| GPPC1-2490-2 | 24 | 35 | 15 | 24 | 170 | 170 | 40 | 200 | 1 | 1 | 3.5 | 15 |
| GPPC1-2475-3 | 24 | 35 | 15 | 24 | 200 | 200 | 40 | 225 | 1 | 1 | 3.5 | 15 |
| GPPC1-3090-1 | 30 | 45 | 20 | 30 | 115 | 145 | 50 | 170 | 1.2 | 1.2 | 3.5 | 15 |
| GPPC1-3090-2 | 30 | 45 | 20 | 30 | 145 | 145 | 50 | 170 | 1.2 | 1.2 | 3.5 | 15 |
| GPPC1-3090-3 | 30 | 45 | 20 | 30 | 170 | 170 | 50 | 200 | 1.2 | 1.2 | 3.5 | 15 |
| GPPC1-3090-4 | 30 | 45 | 20 | 30 | 200 | 200 | 50 | 225 | 1.2 | 1.2 | 3.5 | 15 |
| GPPC1-4090-1 | 40 | 60 | 25 | 40 | 145 | 145 | 65 | 200 | 1.3 | 1.3 | 3.5 | 15 |
| GPPC1-4090-2 | 40 | 60 | 25 | 40 | 170 | 170 | 65 | 225 | 1.3 | 1.3 | 3.5 | 15 |
| GPPC1-4090-3 | 40 | 60 | 25 | 40 | 200 | 200 | 65 | 250 | 1.3 | 1.3 | 3.5 | 15 |
| GPPC1-225300 | 50 | 75 | 30 | 50 | 225 | 225 | 100 | 300 | 1.4 | 1.4 | 3.6 | 15 |
| PROPERTIES | VALUE | STANDARD |
| Tensile Strength | 18 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 450% (min.) | ASTM D638 |
| Water Absorption | 0.1% (max.) | ASTM D570 |
| Hardness | 45 Shore D (Min.) | ASTM D2240 |
| Accelerated Ageing | (150°C for 168 hrs.) | ASTM D2671 |
| Ultimate Elongation | 320% (min.) | ASTM D638 |
| Low Temp. Flexibility on 25mm Mandrel (-40°C for 4 hrs.) | No Cracking | ASTM D3111 |
| Continuous Temperature Limit | -40°C to 125°C | IEC 216 |
| Adherence to the casing | 100 (max.) (@23°C 9N/cm) | Annex B |
| Adherence to the coating (3lp) | 100 (max.) (@23°C 9N/cm) | Annex B |
| Shear Resistance (Adhesive) | 7N/cm² (min.) @23°C (10mm/min.) | DIN 30672 |
| Softening Point (Adhesive) | 130°C (min.) | ASTM E28 |
| Adhesion / Peel Strength | 14N/cm (min.) |
ISO 21809-3
|
